Food Box Machine

Features

Food Box Machine is suitable for 3D carton forming, especially the carton of fast food industry, such as hamburger box, packing box and so on. Compared with the ordinary three-dimensional carton machine, the speed is fast, the feeding time is long, the collection of products, saving labor costs.

xx MAKE A QUOTE pdf PDF Datasheet
Product Detail
TECHNICAL SPECIFICATION

Model

ZX-2000

Paper Weight

200-620g

Speed

70-90pcs/min(one station)

Material

200-620gsm

Corrugating paper thick:1.6mm



Box Size

Length

L 100-450mm

Degree:5°-45°

Width

W 100-600mm

Height

H 15-200mm

Paper Thickness

≤1.6mm

Machine Size

2300*2200*2100mm

Take Away Box

Max 530*530, Min 263*263

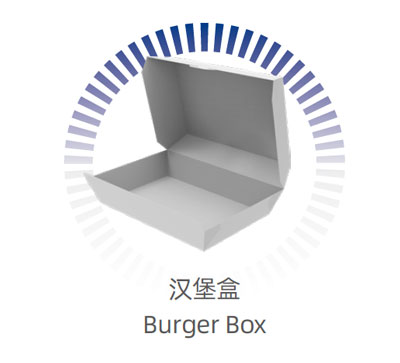

Burger Box

Max 376*262, Min 250*140

Tray Box

Max 290*210, Min 164*107

Voltage

380v/220v

Current

50hz

Power

6kw

Air Requirement

0.5Mpa, 0.4cube/min

Power Source

380V  50Hz

Size

2300*2200*2100mm

Weight

2300kg



BOX TYPE

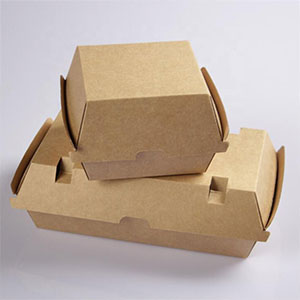

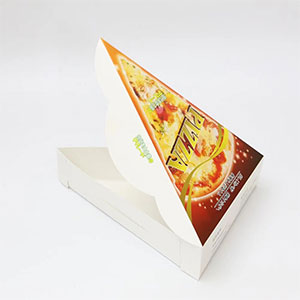

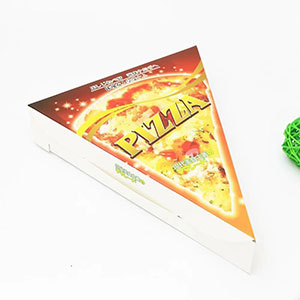

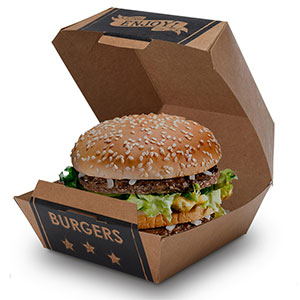

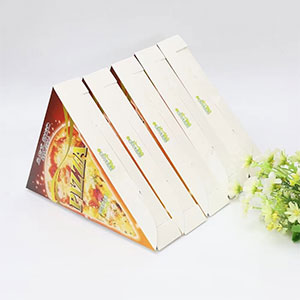

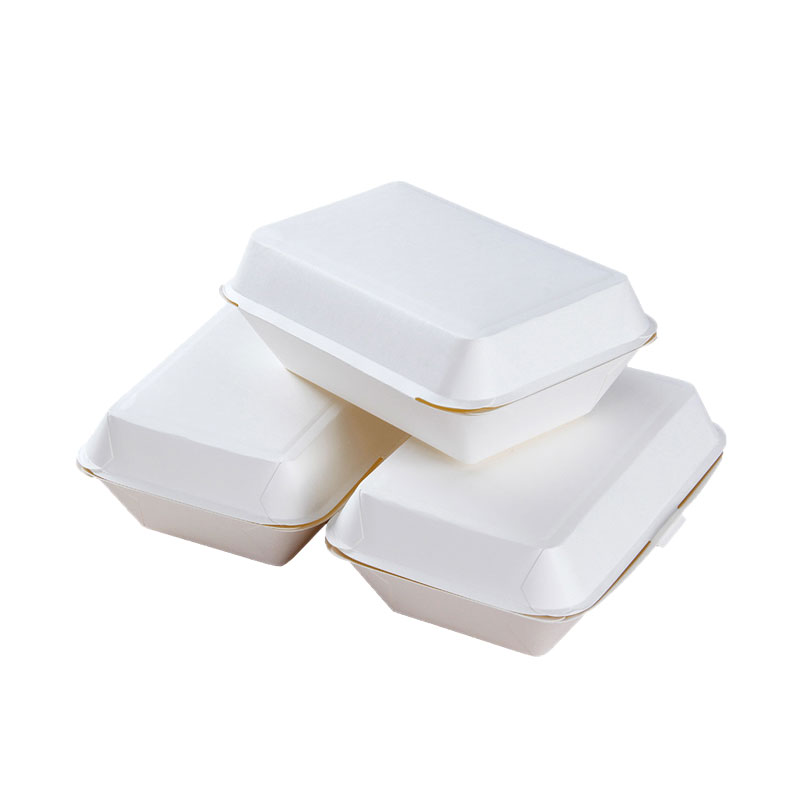

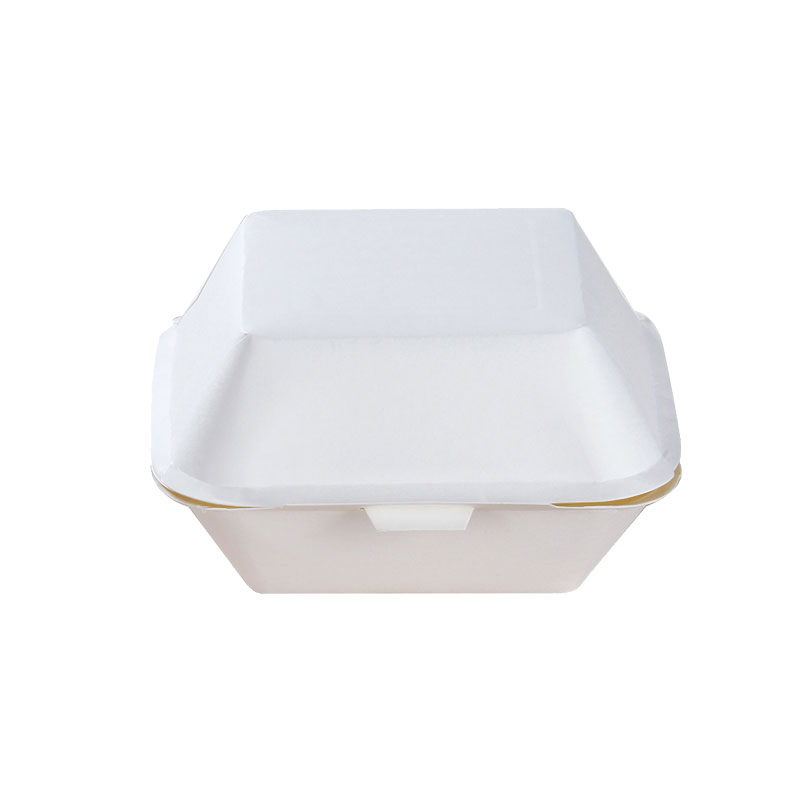

SAMPLE BOX

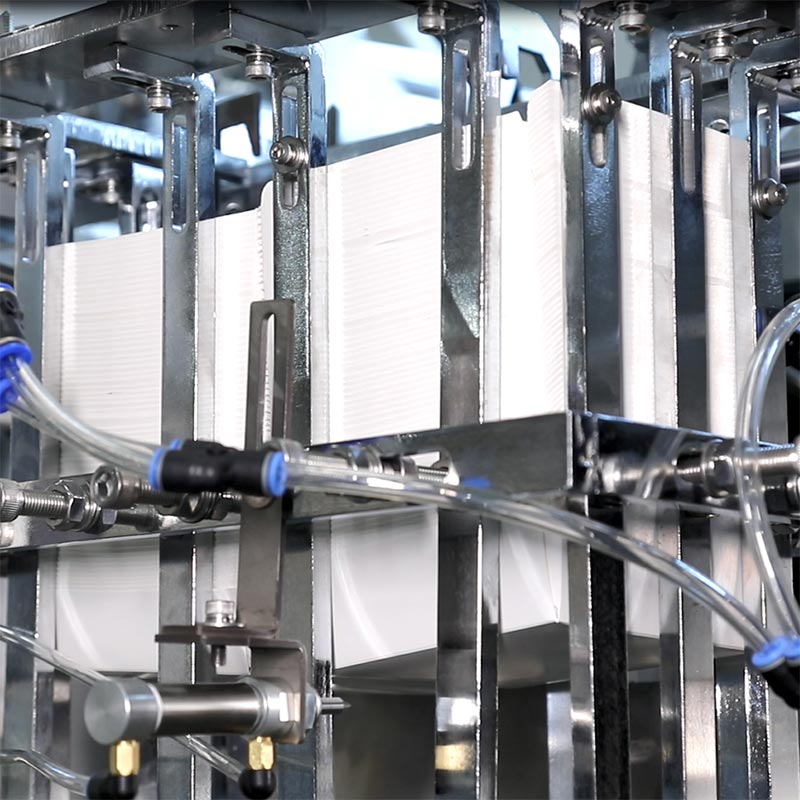

Discharging part:

the paper is conveyed forward through the control of the cylinder, and the pressure plate is controlled by the pedal to replenish the material to achieve a non-stop state

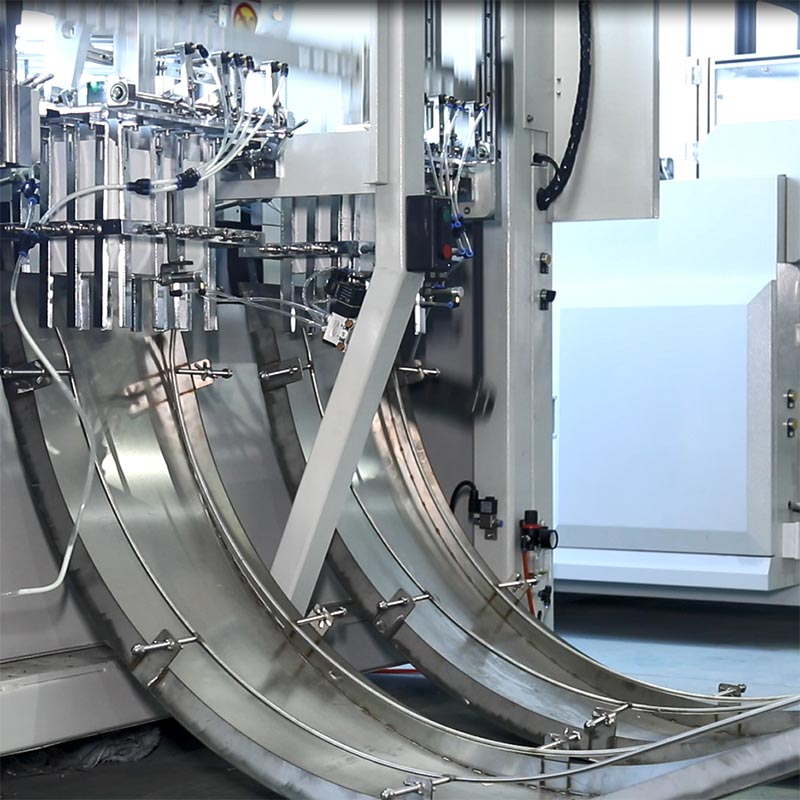

Collection department:

The product is compressed and shaped by the mold

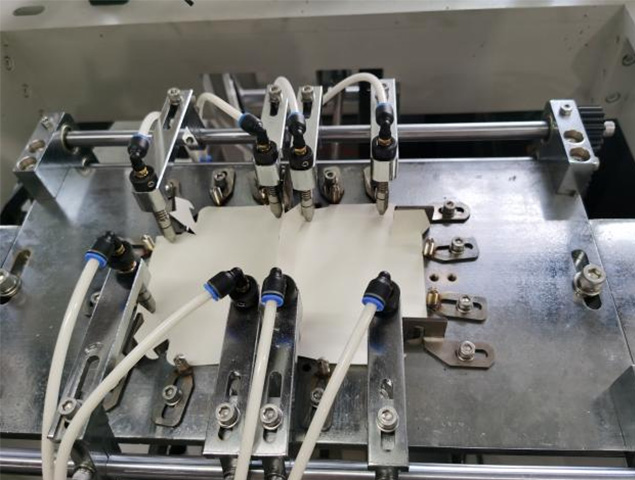

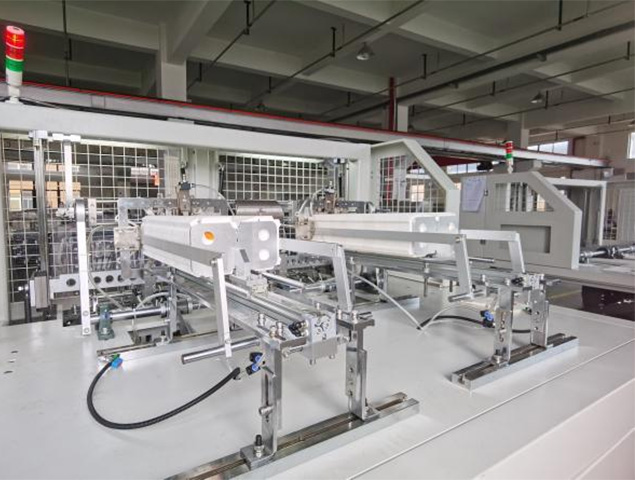

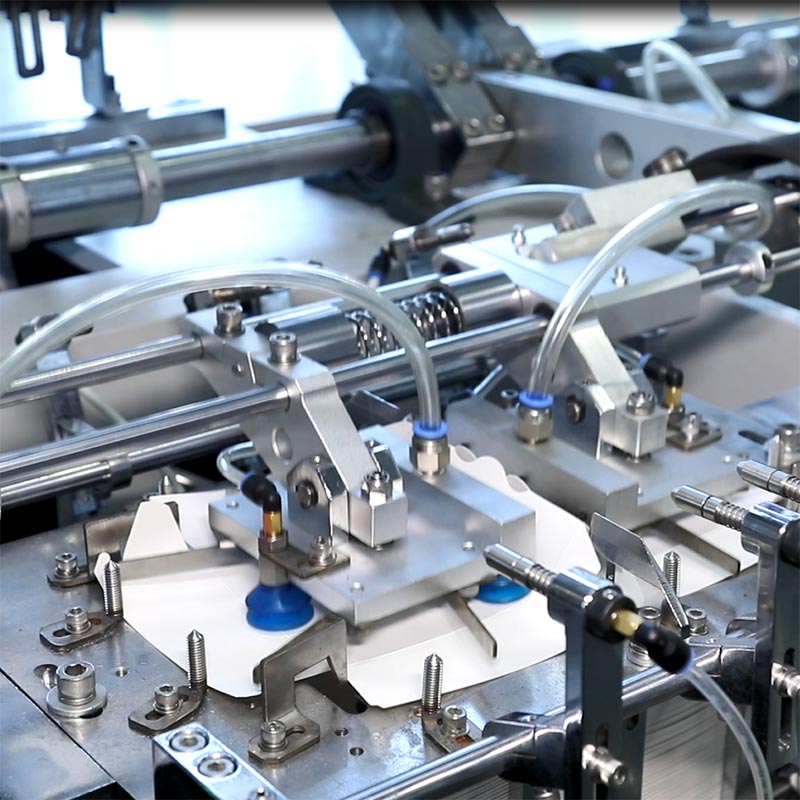

Paper suction part:

Through the up and down movement of the swing arm, the suction nozzle of the machine sucks the paper into the mold from the discharge place

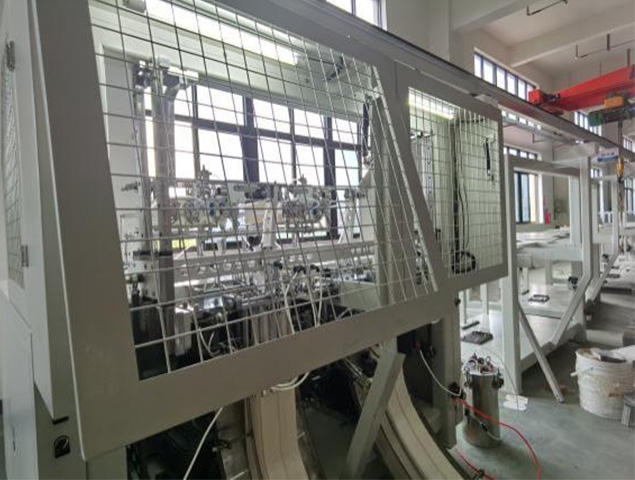

Safety window:

protect the operator from injury when the machine is in operation

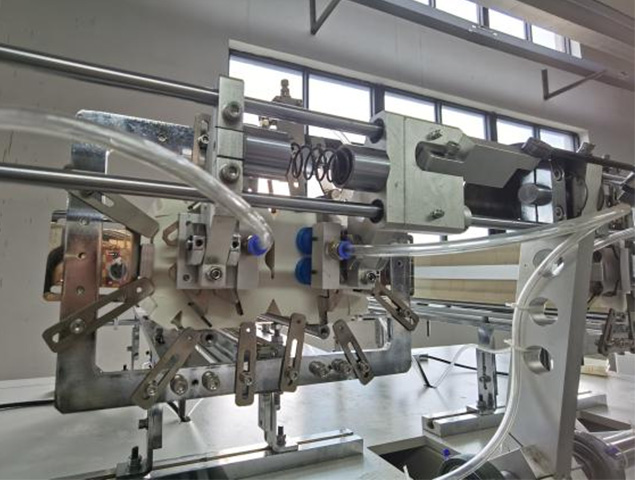

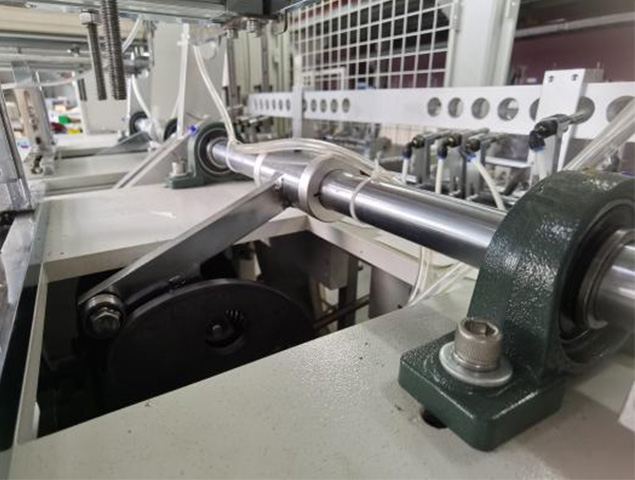

Swing arm part:

control suction nozzle part suction paper and mold pressing

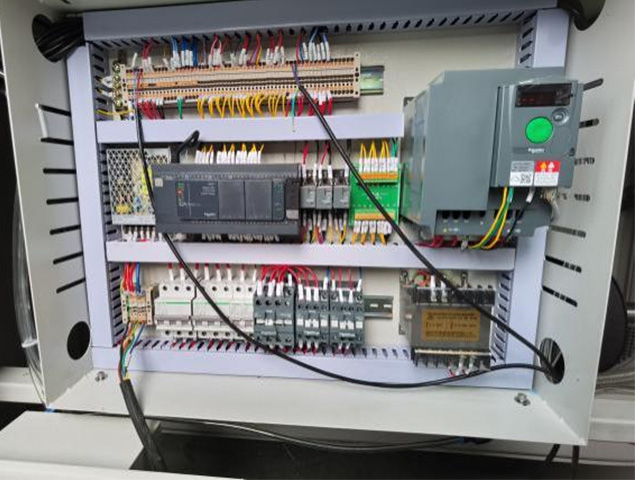

Electric cabinet:

control the data of each motor and servo of the machine, the main electrical appliances are controlled by Schneider

Counter:

how many quantities can be programmed as a unit

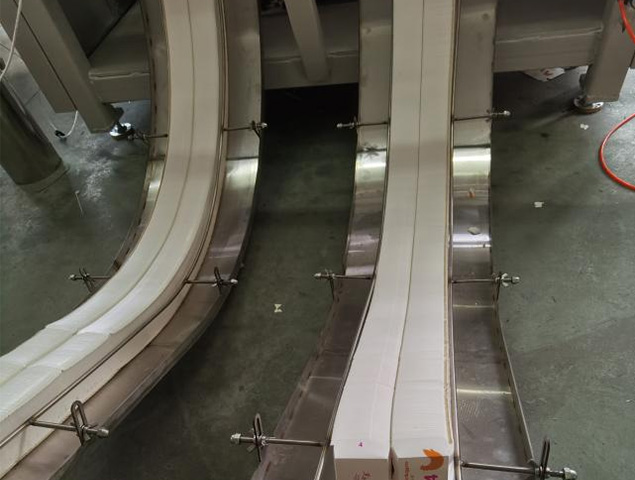

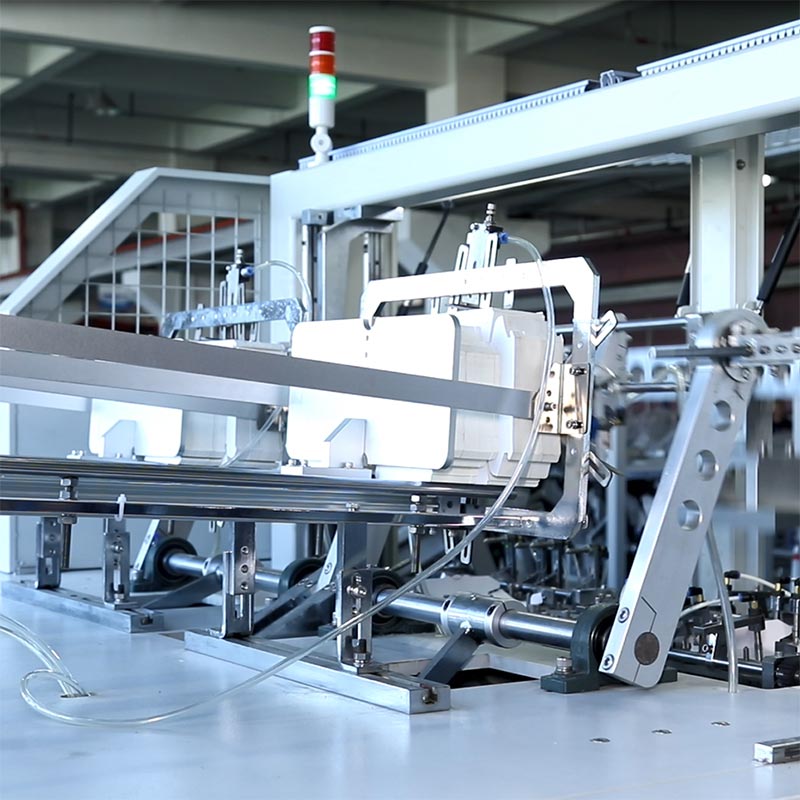

Transport track:

let the product be transported neatly, the size of the product is fixed by the fixing rods on both sides, and the packaging is more convenient

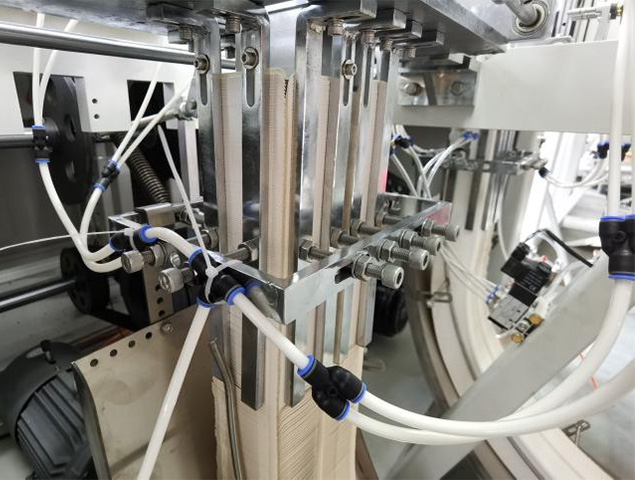

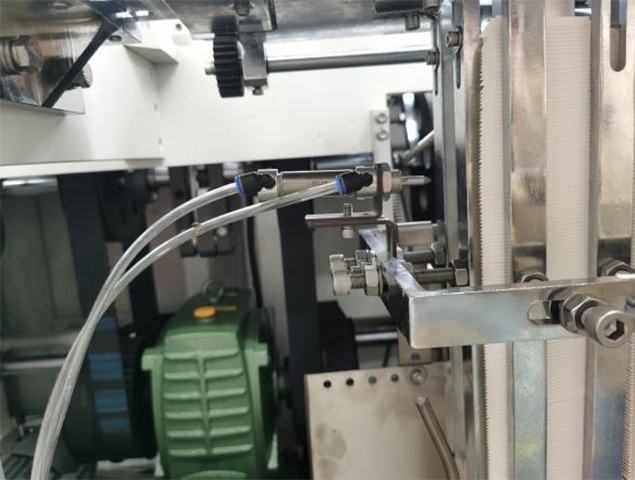

Gluing parts:

The carton is placed under the mold through the suction nozzle and the corresponding corners are glued

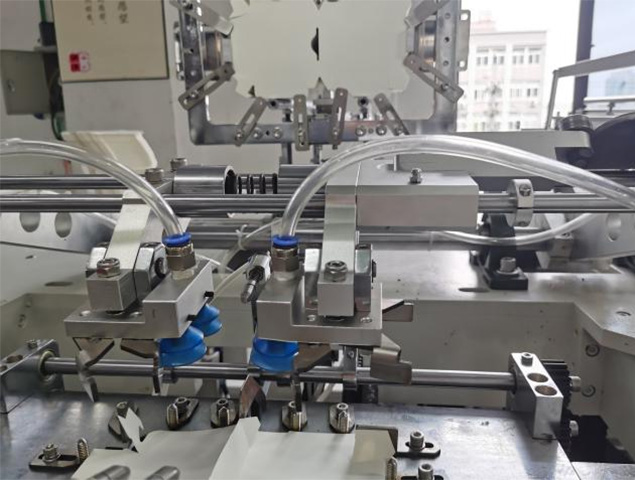

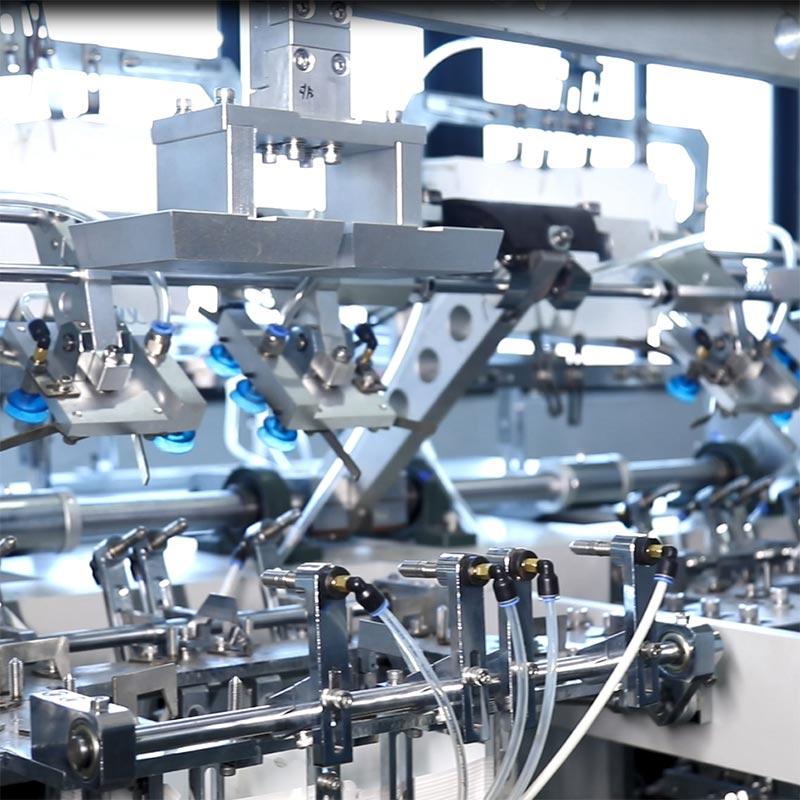

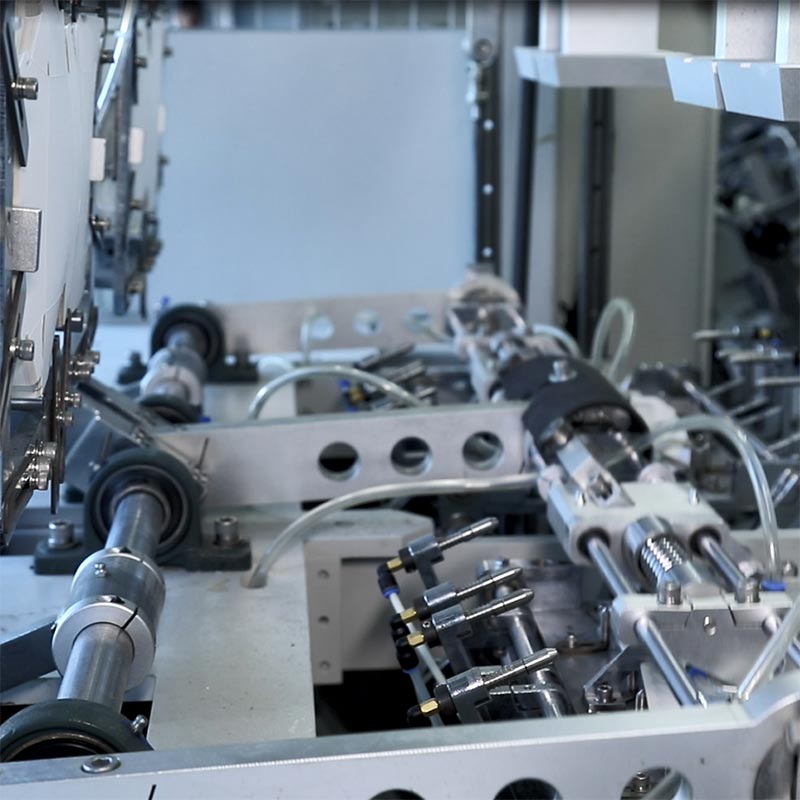

Suction nozzle:

suck the carton by the suction force generated by the air pressure of the cylinder
